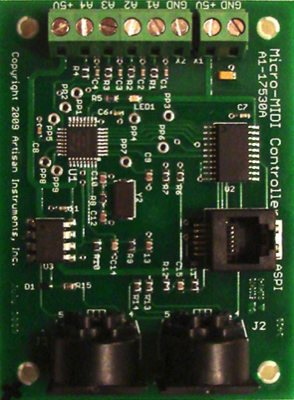

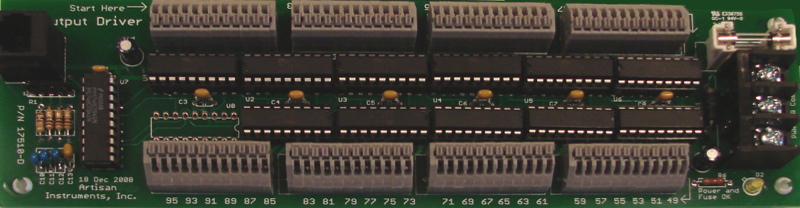

List of Hardware

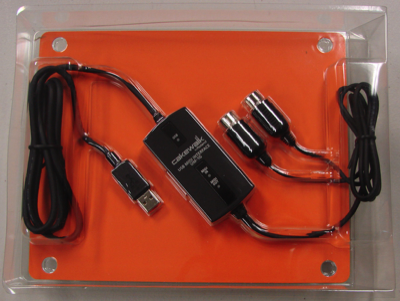

The hardware discussion is focused on the three major items of hardware used in the Micro MIDI (µMIDI) Control System.  There are other peripheral hardware items that are used for special functions.  These can be reviewed on the web site [www.artisanorgans.com] to determine their use and function.

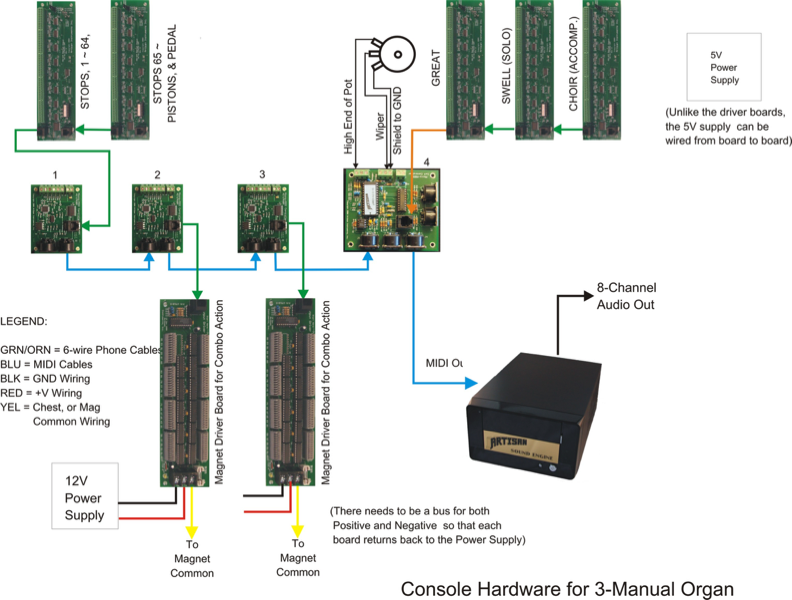

Block Diagram

The Block Diagram shown is simplified, primarily to show the concept of the µMIDI Control System.

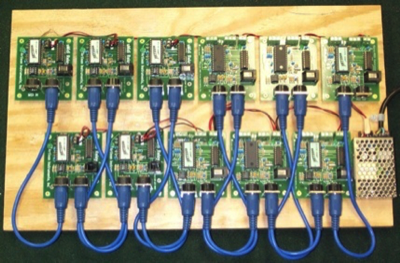

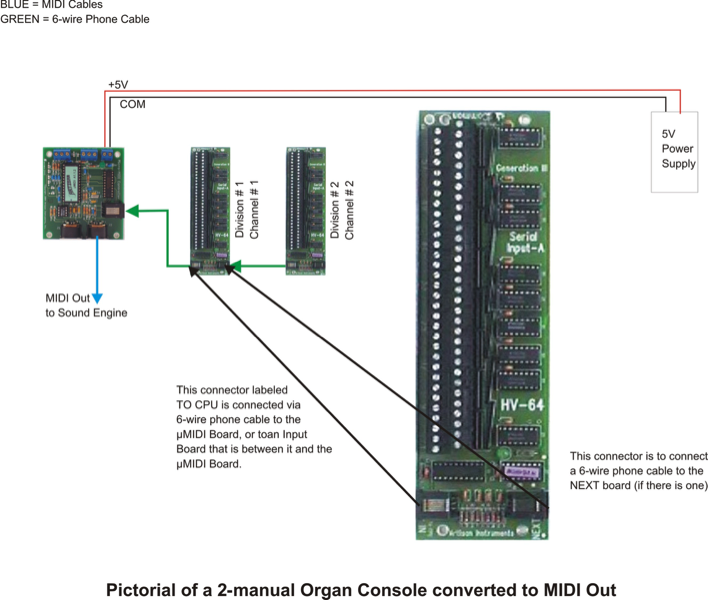

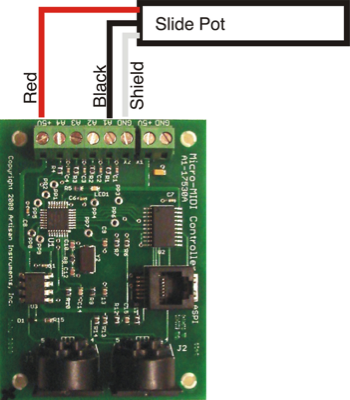

Wiring Instructions

This discussion is probably the most important aspect of the µMIDI Control System ---- or any control system.  Proper wiring ensures long term reliability.

Configuration File

This file is written with a text editor, using the syntax found in The Micro-MIDI Implementation Guide available on the web site.

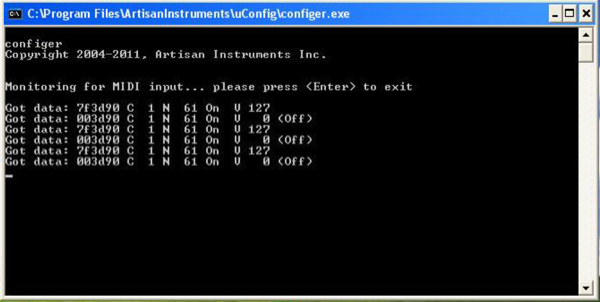

Software

The software supplied is an application program that compiles the text written definition (configuration file) to the form required by the µMIDI Board processor(s).

Customer Support

When logic, reason or understanding fails, there is always the back-up of factory personnel to assist in solving problems.

LIST OF HARDWARE
